| Specification Item | Details |
|---|---|
| Product Name | Overmolding Injection Mold Design |
| Product Type | Overmolding Mold / Insert Injection Mold / Secondary Molding Mold |
| Mold Category | Plastic Mold / Injection Mold |
| Applicable Process | Overmolding, Insert Injection Molding, Secondary Injection, Composite Molding |
| Applicable Material | ABS, PP, PC, PA, POM, TPE, TPU, Rubber-like Materials |
| Mold Structure | Cavity, Core, Guide Pins, Positioning Blocks, Inserts, Ejection System |
| Features | Accurate Positioning, Stable Overmolding, Compact Structure, Custom Development Available |
| Application | Electronic Connectors, Automotive Parts, Tool Handles, Sealing Parts, Wiring Harness Components |
| Customization | Based on 2D Drawings, 3D Models, or Samples |
| Production | Mold Design, Machining, Trial Molding, and Mass Injection Production Available |

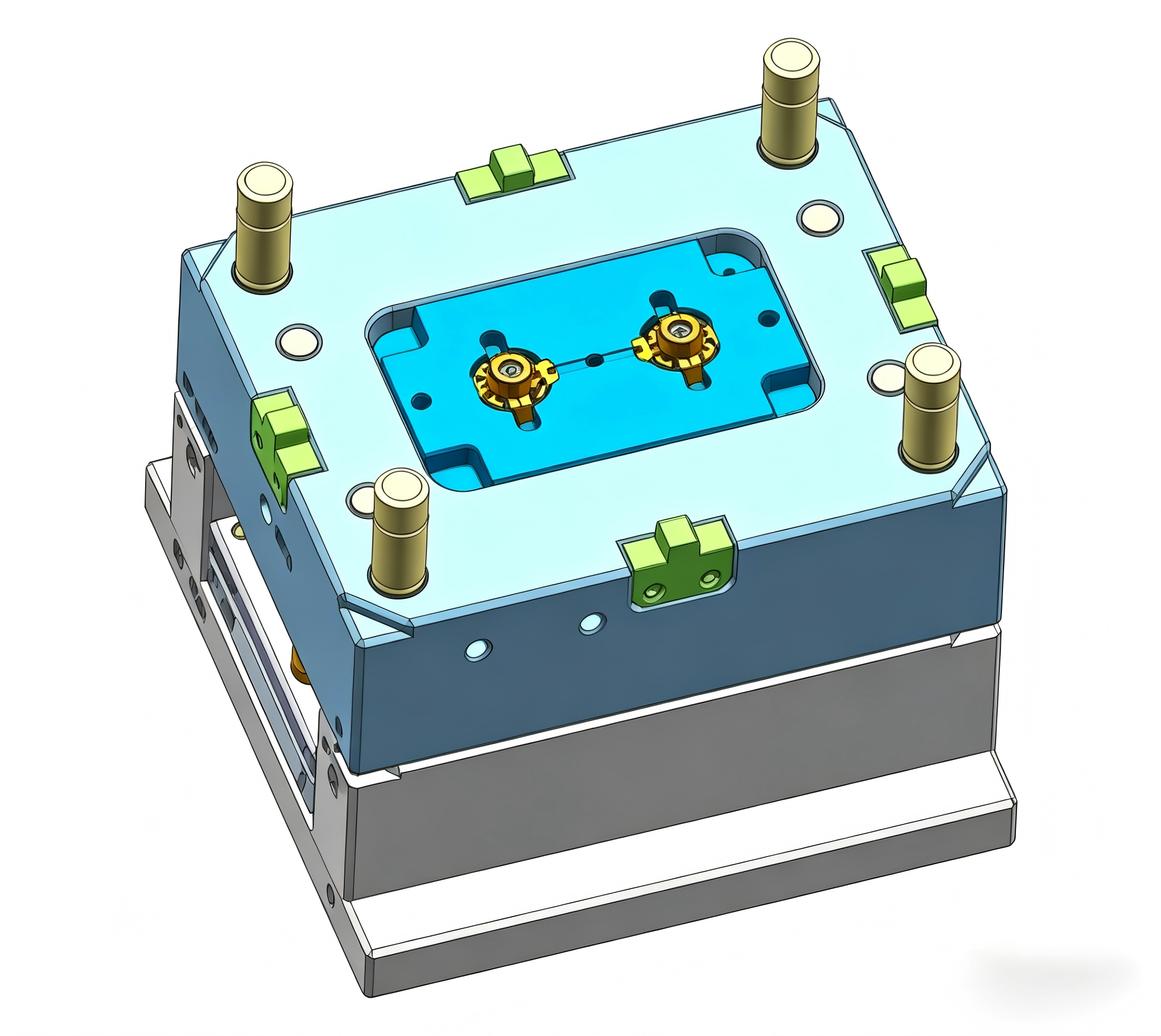

This product is an overmolding injection mold design, mainly used for secondary injection molding of metal inserts, plastic frames, terminal components, or structural parts. The mold accurately positions the insert inside the cavity, then injects plastic, TPE, TPU, or rubber-like materials to achieve covering, sealing, protection, insulation, or improved grip performance. These molds are widely used for electronic connectors, automotive parts, medical components, tool handles, wiring harness components, sealing parts, and composite material products. Mold structure design and development can be customized based on customer drawings, 3D files, or samples.
