| Specification Item | Details |
|---|---|
| Product Name | Transmission System Housing Die Casting Mold |
| Product Type | Transmission Housing Mold / Gearbox Mold / Aluminum Die Casting Mold |
| Mold Category | Precision Die Casting Mold / Mechanical Housing Die Casting Mold |
| Applicable Process | High Pressure Die Casting, Core Pulling, Cooling, Trimming, CNC Machining |
| Applicable Material | ADC12, A380, A360, Al-Si Alloy, Al-Mg Alloy |
| Mold Structure | Cavity, Core, Circular Shaft Hole Structure, Sliders, Core-pulling Mechanism, Gating System, Cooling System |
| Features | Multiple Shaft Holes, Complex Cavity, Stable Sealing Surface, Suitable for Precision Assembly |
| Application | Transmission Systems, Gearboxes, Clutch Housings, Reducers, Motor Accessories |
| Customization | Shaft Hole Position, Sealing Surface, Mounting Holes, Wall Thickness, and Machining Allowance Customization Available |
| Production | Mold Development, Trial Optimization, Die Casting Production, and CNC Machining Available |

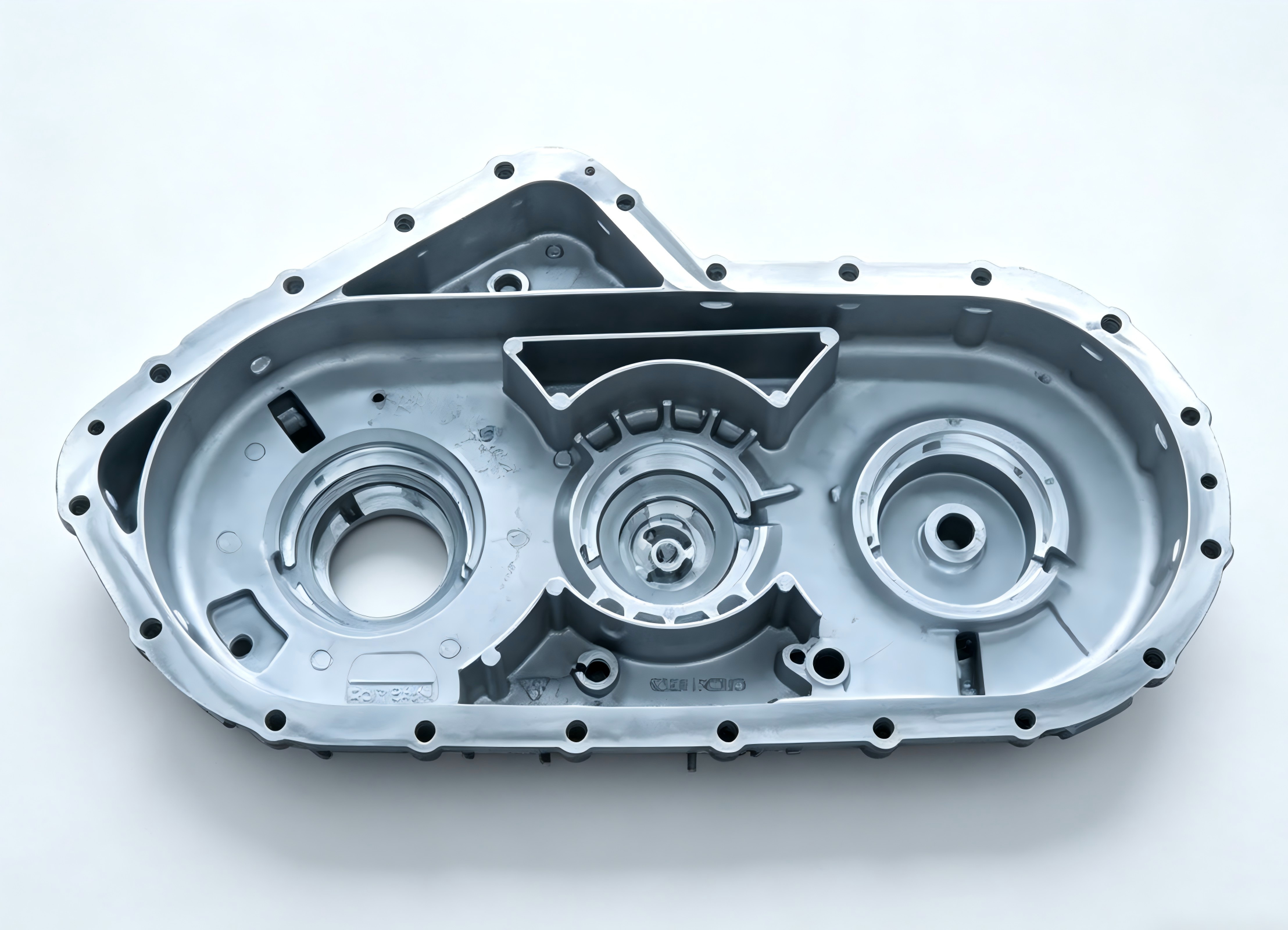

This product is a transmission system housing die casting mold, mainly used to produce aluminum transmission housings, gearbox cases, clutch housings, reducer housings, and power system components. The product usually contains multiple bearing holes, circular mounting areas, sealing connection surfaces, internal chambers, and reinforcing ribs. The mold requires high cavity accuracy, proper core-pulling design, optimized gating, and efficient cooling. After die casting, CNC machining, drilling, tapping, and sealing surface machining are usually required to ensure assembly accuracy and stable operation. This mold type is suitable for automotive, motorcycle, machinery, motor transmission, and industrial power systems.
